GX螺旋輸送機
周先生 13906278080 丁寶勤 13906276368
電話：0513-88400999 傳真：0513-88400998 郵箱：jszk@vip.163.com
一、概述
GX型螺旋輸送機是利用螺旋轉動將物料沿機殼連續推移而進行輸送的。本機具有結構簡單， 外形尺寸小，成本低，操作安全，能按工藝要求滿足多點進料和排料。
.Brief introduction
Type GX Screw Conveyor is conveyed material by screw rotation along shell. It is characterized by simple structure, small outline size, low cost and safe operation. Inlet and outlet at many points according to workmanship request.
二、技術性能與技術參數
Technical capacity and technical parameter
規格{Specification} | 主要技術性能(Main technical capactity) | 驅動裝置(Driving device) | 重量 (Weight) (kg) | |||||
直徑 (Diameter) | 長度 (Length) (m) | 產量(水泥} (噸/時）Output (cement) t/h | 轉速 (轉/分）Speed (r/min) | 減速機(Reducer) | 電動機{Motor} | |||
型號(Type) | 速比(Ratio) | 型號(Type) | 功率 (Power) | |||||
QX200 | ?10 | 9 | 60 | JZQ250 | 23. 34 | Y90S—4 | 1. 1 | 726 |
GX200 | ?20 | 9 | 60 | JZQ250 | 23. 34 | Y90L—4 | 1.5 | 1258 |
GX250 | ?10 | 15.6 | 60 | JZQ250 | 23. 34 | Y100L—4 | 2. 2 | 960 |
Gx250 | ?20 | 15.6 | 60 | JZQ250 | 23. 34 | Y100L—4 | 3 | 1750 |
GX300 | ?10 | 21.2 | 60 | JZQ350 | 23. 34 | Y100L—4 | 3 | 1373 |
QX300 | ?20 | 21.2 | 60 | JZQ350 | 23. 34 | Y112M—4 | 4 | 2346 |
GX400 | ?10 | 51 | 60 | JZ0400 | 23. 34 | Y132S—4 | 5. 5 | 1911 |
GX400 | ?20 | 51 | 60 | JZQ500 | 23. 34 | Y160M—4 | 11 | 2049 |
Gx500 | ?10 | 87.5 | 60 | JZQ400 | 23. 34 | Y132W—4 | 7. 5 | 2381 |
GX500 | ?20 | 87.5 | 60 | JZQ650 | 23. 34 | Y180W—4 | 18. 5 | 5389 |
Qx600 | ?10 | 134.2 | 45 | JZQ750 | 23. 34 | Y180L—4 | 22 | 3880 |
Gx600 | ?10 | 134.2 | 45 | JZQ850 | 23. 34 | Y250M—4 | 55 | 7090 |
三、GX型螺旋輸送機的制法和裝法說明
Type GX Screw Conveyor has S and D types according to applied condition.
Type S~with screw of hypostatic screw surface, the pitch is equal to 0.8 times of diameter.
Type D~With screw of screw surface, the pitch is equal to diameter.
Type GX screw conveyor has right and left assemble way according to different assembling way.
Right assemble-Stand in the tail of motor and look forward, low speed shaft of reducer is on the right of motor.

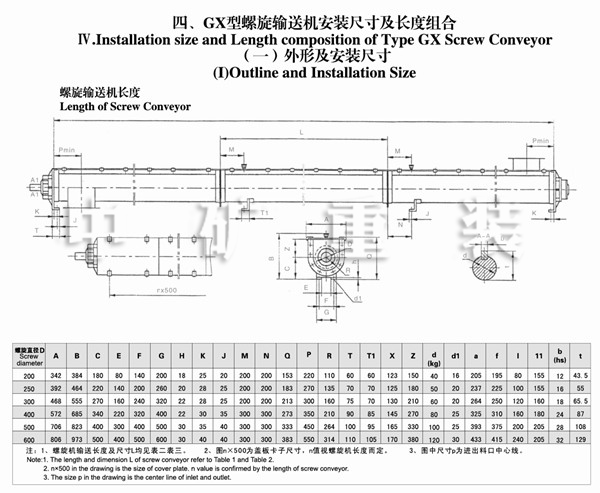

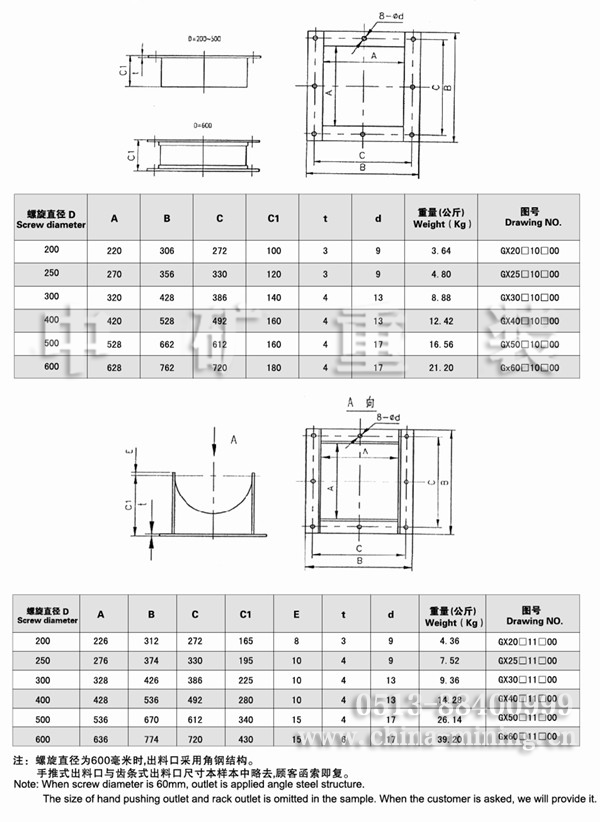

Left assemble-Stand in the tail of motor and look forward, low speed shaft of reducer is on the left of motor. Outlet mouth of type GX screw conveyor has square outlet, hand drawing outlet and gear outlet. The direc-tion of rear two outlet plates has right and left assembling.
Right assemble—Stand on head part of screw conveyor and look tail part, drawing plate is to the right.
Left assemble—Stand on tail part of screw conveyor, drawing plate is to the left.
